Description

OUTLINE

This is a pressure transmitter in which the displacement of a Bourdon tube, a pressure sensing portion, is outputted as an inductance variation, converted into a signal in proportion with measured quantity and transmitted.

FEATURES

• This pressure transmitter demonstrates excellent anti-vibration and environment- durable properties.
• This pressure transmitter is small in size and light in weight.
• This pressure transmitter obtained the approval from the Lloyd Standard, NK Approval and NV Approval*1 and is appropriate for marine application.

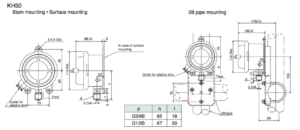

KH 50 Pressure transmitter

• This is a low-priced pressure transmitter equipped with a
  bayonet type stainless steel case. The case construction demonstrates excellent hermetic properties and anti- environment properties due to stainless steel.
• The interior construction is of block type, making maintenance work easier.
